The installation position of a pressure check valve in a pipeline is a crucial factor that can significantly impact the performance, safety, and efficiency of a fluid - handling system. As a pressure check valve supplier, we understand the complexities and importance of choosing the right installation spots for these valves. In this blog, we will delve into various installation positions and their implications in different pipeline applications.
General Principles of Pressure Check Valve Installation
Before exploring specific installation positions, it's essential to understand some general principles. A pressure check valve is designed to allow fluid to flow in one direction while preventing backflow. The primary goal of its installation is to ensure proper flow control, protect equipment from reverse flow damage, and maintain system integrity.
Installation at the Pump Discharge
One of the most common installation positions for a pressure check valve is at the pump discharge. Installing the check valve close to the pump discharge prevents backflow when the pump stops operation. This is crucial because backflow can cause the pump to reverse - rotate, potentially damaging the impeller, seals, and other internal components. For example, in a water - supply system, when the pump shuts off, without a properly placed check valve at the discharge, the water could flow back into the pump, leading to premature wear and even failure. Our Hydraulic Polit Check Valve is an excellent choice for such applications, as it can quickly and reliably seal to prevent backflow.
Installation at the Inlet of Critical Equipment
Pressure check valves are often installed at the inlets of critical equipment such as boilers, heat exchangers, and compressors. These devices are sensitive to the direction of fluid flow, and reverse flow can cause significant damage. For instance, in a boiler system, a check valve at the water inlet ensures that hot water or steam does not flow back into the supply line. This protects the water - feed pumps and other upstream components from high - temperature damage. Our Overcenter Conterbalance Valve Hydraulic can be used in industrial systems where precise control of fluid flow into critical equipment is required.
Installation in a Parallel Pipeline System
In parallel pipeline systems, pressure check valves are used to ensure proper flow distribution. When multiple pipelines are connected in parallel, each branch may have different flow resistances. A check valve in each branch helps to prevent flow from one branch flowing back into another. This is particularly important in systems where balanced flow is necessary for optimal performance. For example, in an oil - distribution system with multiple storage tanks, check valves in each pipeline leading to the tanks ensure that oil is evenly distributed and does not flow back between the pipelines. Our Double Way Hydraulic Control Valve Counterbalance Valve Supplier products are well - suited for parallel pipeline applications due to their ability to provide reliable flow control.
Installation at the End of a Pipeline
Installing a pressure check valve at the end of a pipeline can prevent siphoning and back - siphoning. In some applications, such as in a drainage system, when the water level in the receiving tank drops below the pipeline outlet, a siphoning effect can occur. A check valve at the end of the pipeline can stop this siphoning, preventing the unwanted drainage of fluid from the pipeline. Our Double Overcenter Valve Hydraulic Balance Control Valve can be effectively used in situations where siphoning prevention is required.
Installation in High - Pressure and Low - Pressure Areas

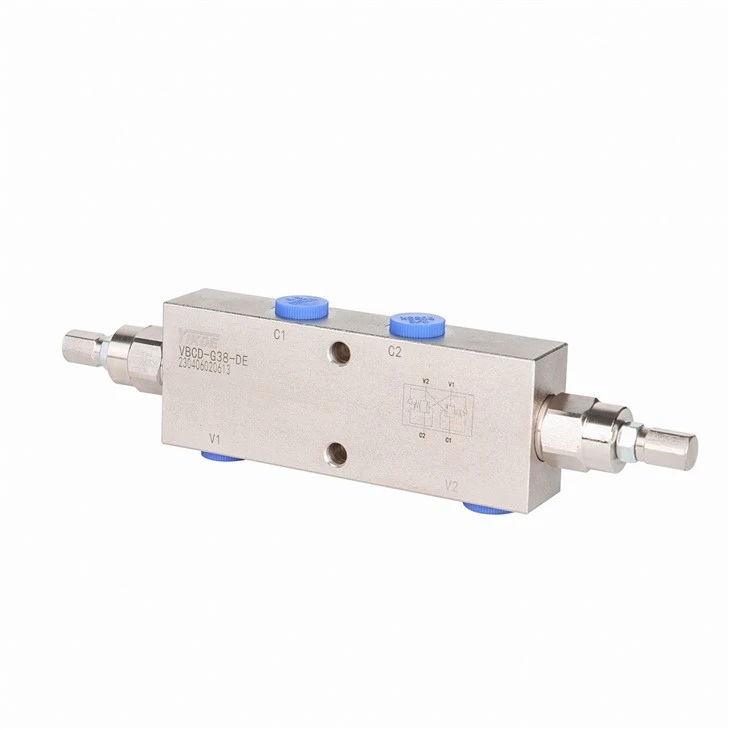

In a pipeline with significant pressure variations, the choice of installation position for the pressure check valve is crucial. In high - pressure areas, the check valve needs to be able to withstand the high - pressure differentials. A valve installed in a high - pressure section should have a robust design and proper sealing characteristics to prevent leakage. On the other hand, in low - pressure areas, the valve should be able to operate effectively with minimal pressure differentials. Our Overcenter Balance Valve Hydraulic Valve For Hydraulic System is engineered to perform well in both high - and low - pressure environments, making it a versatile option for various pipeline systems.
Considerations for Installation
When installing a pressure check valve, several factors need to be considered. Firstly, the orientation of the valve is important. Most check valves are designed to operate in a specific orientation, and incorrect installation can lead to improper functioning. Secondly, the pipeline layout and the available space for installation should be taken into account. In some cases, a compact valve may be required due to limited space. Additionally, the fluid properties, such as viscosity, temperature, and corrosiveness, should influence the choice of valve material and design.
Maintenance and Inspection
Proper installation also affects the maintenance and inspection of the pressure check valve. Valves installed in easily accessible locations are easier to inspect and maintain. Regular maintenance, including checking for leaks, wear, and proper operation, is essential to ensure the long - term reliability of the valve. By choosing the right installation position, you can simplify the maintenance process and reduce downtime.
Choosing the Right Installation Position
The selection of the installation position for a pressure check valve should be based on a comprehensive analysis of the pipeline system. Consider the function of the system, the type of fluid being transported, the pressure and flow requirements, and the potential risks associated with reverse flow. Consulting with a professional engineer or relying on the expertise of a experienced valve supplier can help you make the best decision.
Conclusion and Call to Action
As a leading pressure check valve supplier, we have a wide range of products suitable for various installation positions in pipelines. Our valves are designed and manufactured with high - quality materials and advanced technology to ensure reliable performance. Whether you need a valve for a pump discharge, critical equipment inlet, parallel pipeline system, or other applications, we have the right solution for you.
If you are looking for high - quality pressure check valves or need advice on installation positions, we encourage you to contact us for a procurement discussion. Our team of experts is ready to assist you in finding the best valve for your specific needs and ensuring a successful installation.
