Hydraulic Rotary Joint Rotary Union For Crane

Shandong Yikaide Hydraulic Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic rotary joint rotary union for crane in China. If you're going to buy hydraulic rotary joint rotary union for crane made in China, welcome to get more information from our factory. Also, customized service is available.

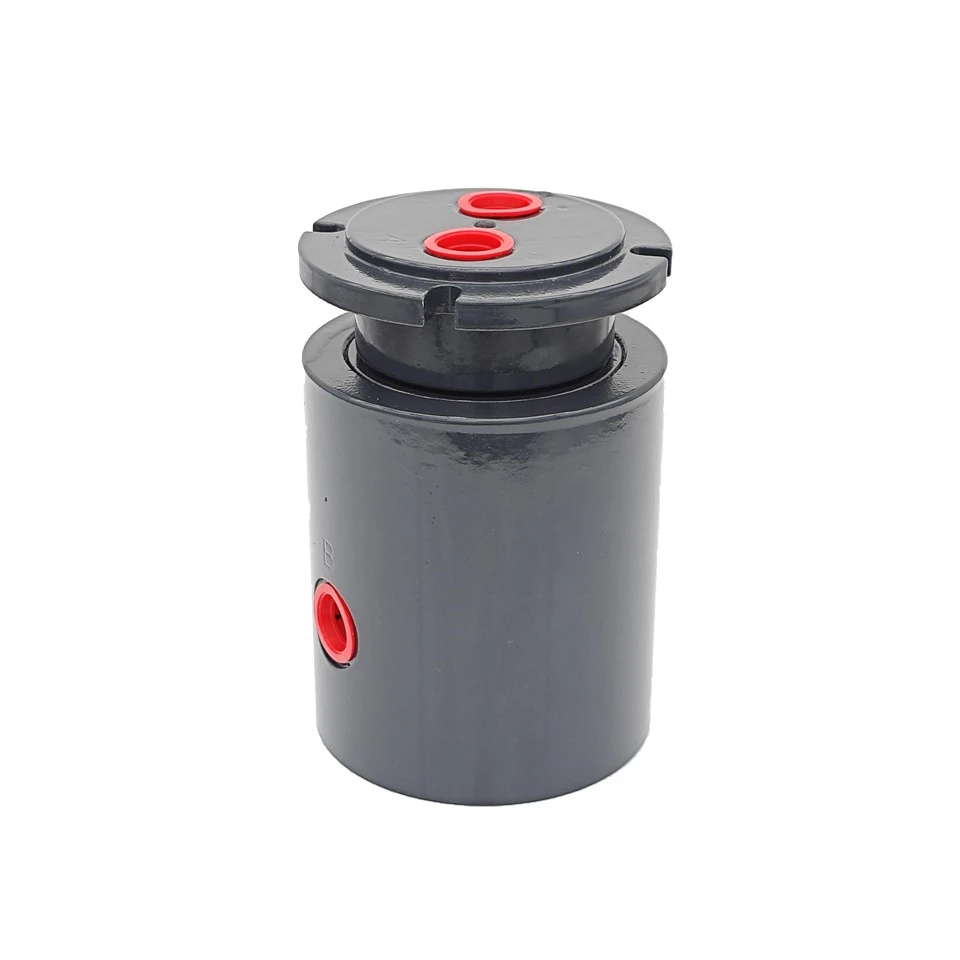

This rotary joint is a two-way rotary joint, primarily used in crane reels. Currently, this rotary union is secured by bolts, unlike existing designs that use retaining blocks. This rotary joint has internal bearings.
The main material of this joint is 45# steel, and the surface is painted to protect it from rust. The valve core has high internal precision, achieved through honing.

Oil Distribution: High-pressure oil from the hydraulic pump enters the rotary joint through the housing and is distributed to the various actuators of the upper structure (such as the boom, arm, bucket cylinders, or swing motor) via annular oil grooves and corresponding passages in the rotor.
Independent Channels: Each oil passage corresponds to an independent function (e.g., A/B ports control cylinder extension and retraction), and is isolated by sealing rings to prevent oil leakage between channels.

Dynamic Sealing: A dynamic seal is formed between the rotor and the housing through multiple sealing rings, maintaining oil circuit integrity even during rotation. The sealing rings must withstand high pressure (typically 20-35 MPa), be wear-resistant, and accommodate frequent rotation.
Pressure Balancing: Some designs utilize balancing grooves or pressure relief channels to reduce the pressure difference across the seals, extending seal life.

Bearing Function: Bearings (such as needle bearings or plain bearings) support the rotor for smooth rotation, reduce frictional resistance, and simultaneously bear the axial and radial loads during the rotation of the upper structure.

Shandong Yikaide Hydraulic Co., Ltd., a manufacturer of high-end intelligent precision hydraulic key components, boasts over 150 sets of high-end intelligent equipment and a 10,000-square-meter high-tech factory, dedicated to high-end intelligent manufacturing. Founded in 2013, the company has developed over 400 products in 26 series, including central rotary joints, counterbalance valves, pilot operated check valve, and solenoid valves, covering fields such as construction machinery, mining machinery, agricultural machinery, and environmental protection machinery. Its clients include well-known domestic equipment manufacturers such as Danfoss, SDLG, LONGKING, HANDLER and TGB GROUP.

The housing and valve core of the rotary joint are inspected under a high-magnification microscope and, upon passing inspection, are placed in the semi-finished goods warehouse.
Before each finished product is put into storage, the quality inspection department tests the product. Only after passing the inspection is it placed in the finished goods warehouse.
