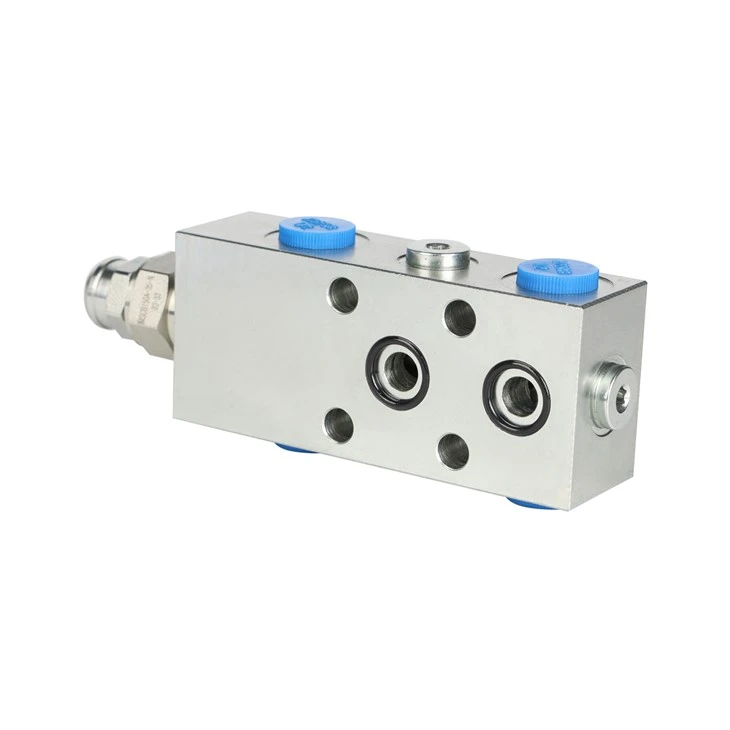

Shandong Yikaide Hydraulic Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic control valve counterbalance safety valve for hydraulic system in China. If you're going to buy hydraulic control valve counterbalance safety valve for hydraulic system made in China, welcome to get more information from our factory. Also, customized service is available.
Introduction
A unidirectional balance valve, also known as a support valve or counterbalancing valve, is a composite valve that integrates the functions of a check valve and an adjustable relief valve. Its main purpose is to control the uniform and stable lowering or retraction of an actuator (such as a hydraulic cylinder or hydraulic motor) under the influence of gravity, preventing it from stalling, losing control ("nodding," shaking, or free-falling).
Simply put, it allows hydraulic fluid to flow freely in one direction (check valve function) and to flow in a controlled, restricted manner in the opposite direction (relief valve function).
Working Principle
Counterbalance valves work on the same principle as internal leakage one-way sequence valves, according to the different forms of control, counterbalance valves also have internal and external control points.
Products drawing
Products parameter
| Parameter Model | VBCD-G38-SE-FL |
| H | 55 |
| S | 30 |
| C | 12.5 |
| Oil port thread | G3/8 D=26 L=14(C1-C2,V1-V2) |
| G1/4(M) | |
| Oil port standard | ISO 1179-1 |
| Max flow | 40L/min |
| Max pressure | 32MPa |
| Pilot ratio | 1:4.25 |
| Weight | 1.2kg |
| Sealing form | O-Ring(NBR) |
| Sealing ring specifications | φ2.4xIDφ11.6 |
| Operating temperature | -30~100°C |
| Working medium | 46#Anti-wear hydraulic oil |
| Oil cleanliness | NAS 16389&ISO 4406 20/18/15 |
| Valve body | 45 steel, surface electroplating treatment |

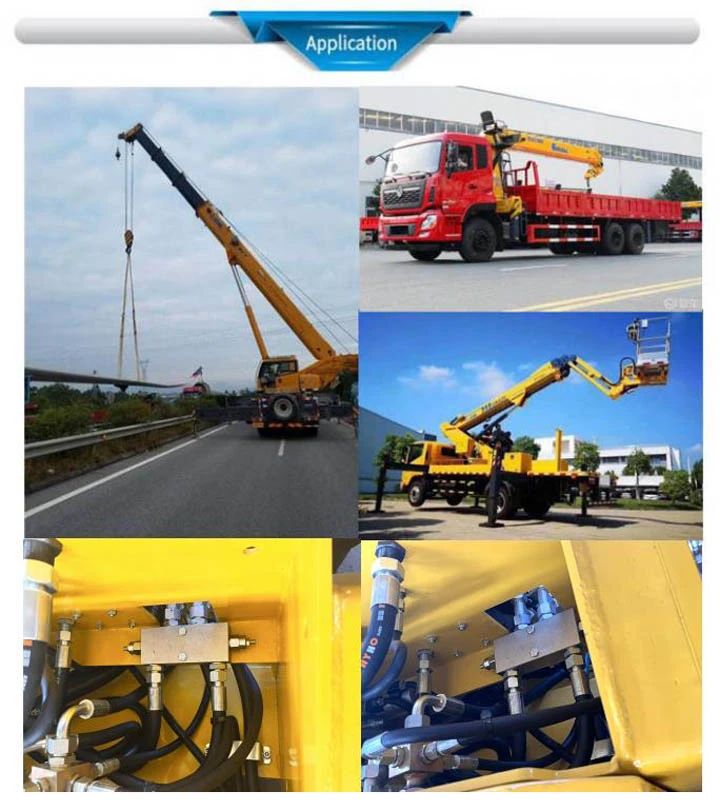

Application
Company Profile
Shandong Yikaide Hydraulic Co., Ltd, located in Zoucheng City, Shandong Province, covers an area of 20,000 square meters. It is a high-tech enterprise specializing in the research, development, and manufacture of high-end intelligent precision hydraulic key components.
The company boasts an experienced and professional technical team with years of experience in the hydraulic machinery field. With nearly 40 patents, the company sets an industry benchmark with its exceptional strength and provides customers with leading hydraulic system solutions.
The company has achieved Triple Certification (ISO9001, ISO14001, and ISO45001) and has established a standardized management model for the entire process, from R&D and design to production and delivery. Leveraging 3D modeling, digital simulation, and collaborative design, product development achieves rapid, efficient, and accurate output. A digital management platform ensures collaboration across all processes and precise, controllable operations.
The production workshop integrates digitalization and intelligence, incorporating an industrial internet platform to enable equipment networking, real-time data analysis, and flexible production. This ensures traceability throughout the product lifecycle. Production equipment is equipped with intelligent sensing and remote monitoring systems, enabling fault warning and precise operation and maintenance.
FAQ
Q1: Are you trading company or manufacture?
A: We are manufacture which have the right to import and export.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock or it is 30-40 days if the goods are not in stock.
Q3: Do you provide samples? Is it free or extra?
A: We can provide samples,but not for free.
Q4: What is your terms of payment?
A: Payment less than 1000 USD,100% in advance.Payment more than 1000 USD,30% T/T in advance,balance before shipment.
