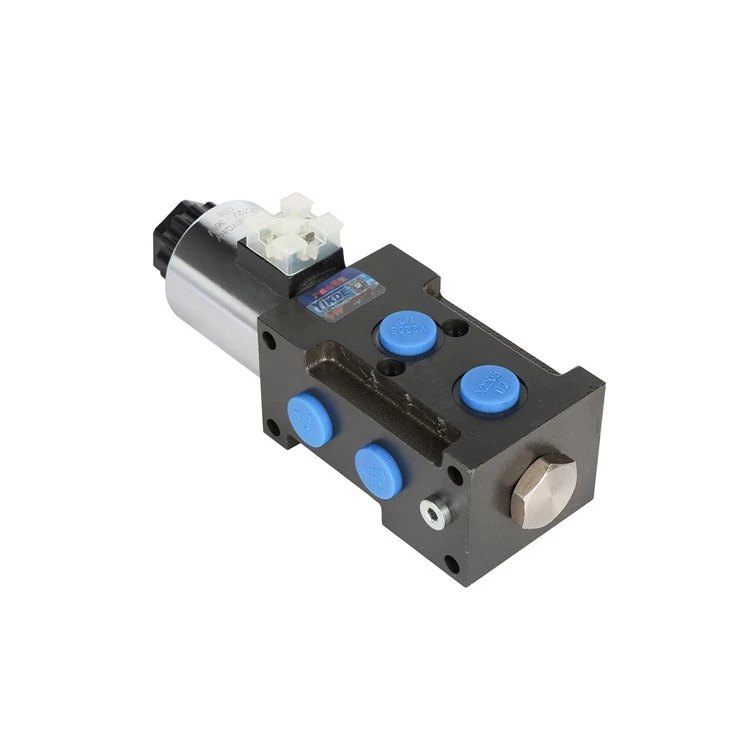

Shandong Yikaide Hydraulic Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic oil way selecttion valve in China. If you're going to buy hydraulic oil way selecttion valve made in China, welcome to get more information from our factory. Also, customized service is available.
Products Description
Two-position: This refers to a valve spool with two primary operating positions, typically switched solenoidally. For example, one position is "normal" and the other is "actuated."
Six-way: This refers to a valve body with six external oil ports, allowing for connection to six hydraulic lines. This is key to understanding its function.
Oil selector valve: This clearly defines its function-by switching the valve spool position, it selects different oil flow paths, thereby changing the direction of hydraulic oil flow and controlling the movement of actuators (such as cylinders).
Products working principle
The core function of a 6-way, 2-position valve is to simultaneously redirect the flow of two main oil circuits through the switching of a single valve.
Its most common application is controlling the two different operating modes of a double-acting hydraulic cylinder. For example:
Normal mode: The cylinder is controlled by the main directional control valve, performing conventional extension and retraction operations.
Priority mode: This connects the cylinder's inlet and outlet oil circuits to a preferred oil source or a special function circuit (such as a locking circuit or synchronization circuit), independently of the main system.
Products drawing
Products parameter
| parameter Model |
MOP06-**
|
| Oil port thread | G3/8 D=26 L=14(P1.P2.A.B.C.D) |
| G1/4 D=22 L=13(WL) | |
| Oil port standard | ISO 1179-1 |
| Max flow | 40L/min |
| Max pressure | 25MPa |
| Solenoid coil voltage | DC 12V±10%/DC 24V±5% |
| Internal leakage | 5ml/min@ 15MPa |
| Weight | 2.9kg |
| Operating temperature | -30~100°C |
| Working medium | 46#Anti-wear hydraulic oil |
| Oil cleanliness | NAS1638 9&ISO 4406 20/18/15 |
| Valve body material | Cast iron, surface spray paint |
Products application
Products delivery
